Convertible Top Diagrams



TopsOnline provides the following convertible top diagrams in order to provide you with a look at typical convertible top assemblies. Not all convertible tops will contain all of the components displayed here, however, these should provide a good guide for you to get a better understanding of the components of your convertible top.

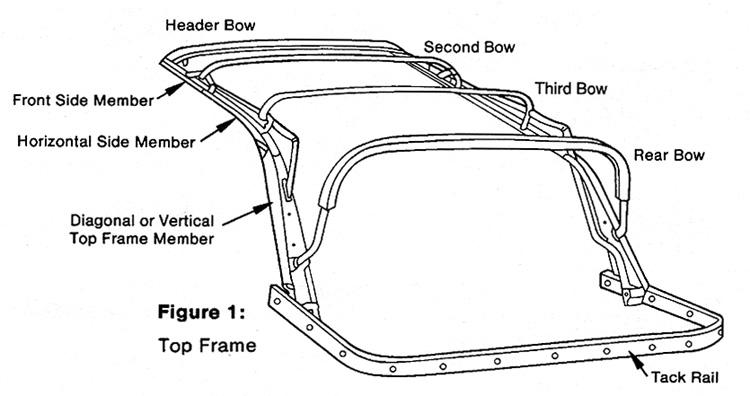

Diagram 1: A Typical Convertible Top Frame
TopsOnline Convertible Top Diagram 1

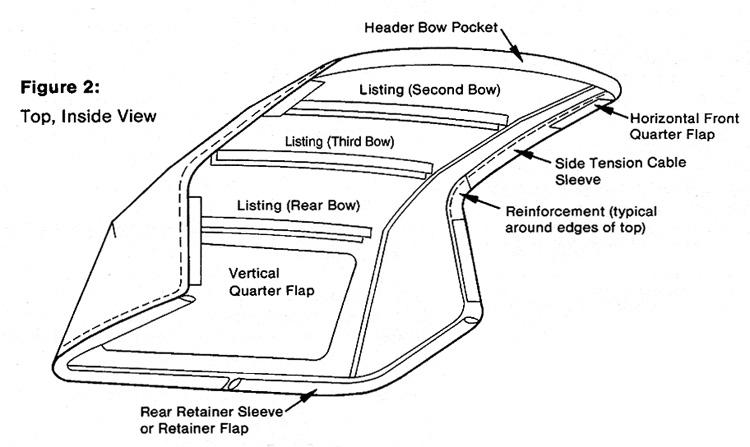

Diagram 2: A Typical Convertible Top, Inside View
TopsOnline Convertible Top Diagram 2

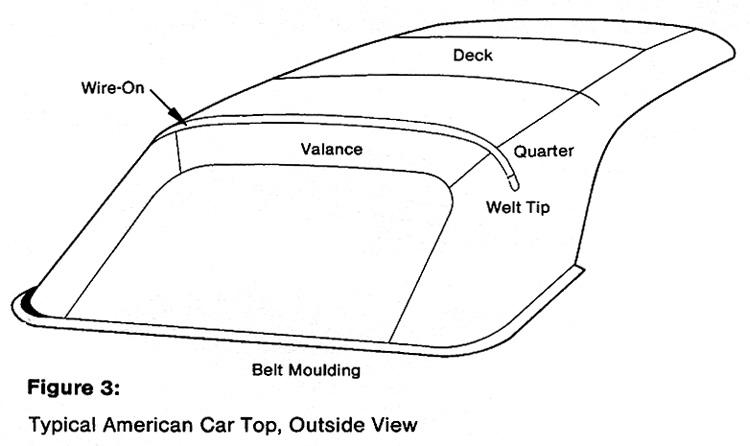

Diagram 3: A Typical American Convertible Top, Exterior View
TopsOnline Convertible Top Diagram 3

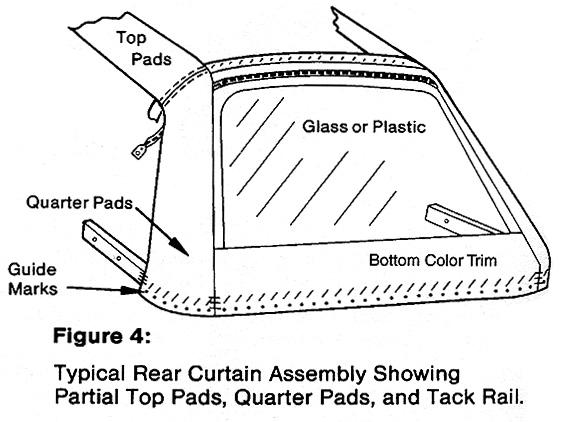

Diagram 4: A Typical Convertible Top Rear Curtain Assembly
TopsOnline Convertible Top Diagram 4

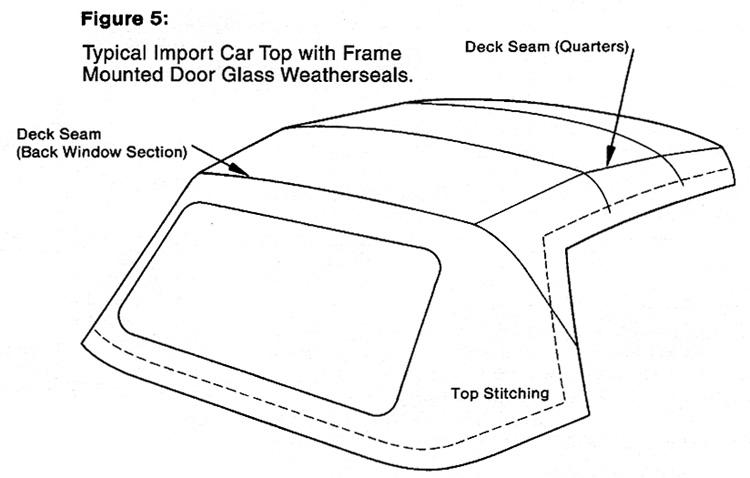

Diagram 5: A Typical Import Car Convertible Top
TopsOnline Convertible Top Diagram 5

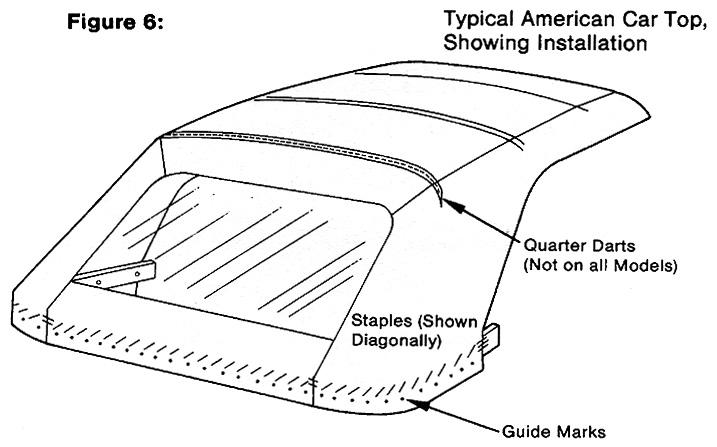

Diagram 6: A Typical American Convertible Top with Installation Pointers
TopsOnline Convertible Top Diagram 6

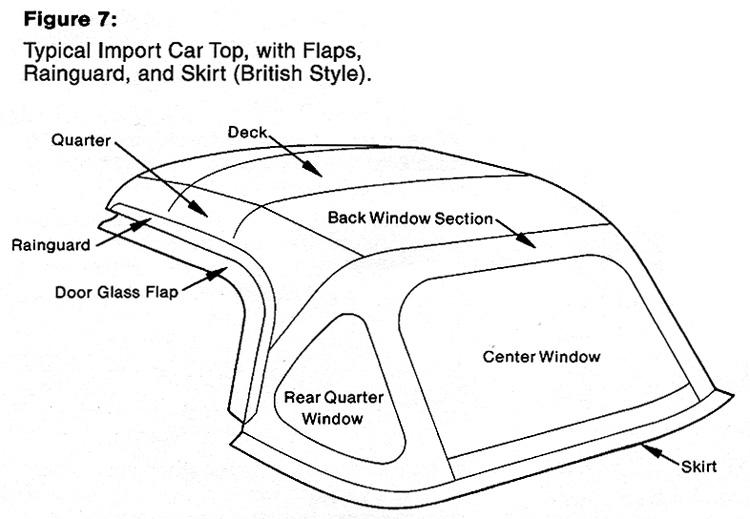

Diagram 7: A Typical Import Car Convertible Top, with Flaps, etc.
TopsOnline Convertible Top Diagram 7
